Our Products

LT & HT Auto Synchronization panels

Designed to automatically synchronization one to multiple power generators. They are widely used for running and controlling multiple power generators in synchronization and other multiplexing solutions.

• - 433V up till 11 KV DG synchronization.,
• - Mains paralleling and Grid Synchronization
• - Auto / Manual Operation, for Manual override.
• - Inherent Automatic Mains Failure (AMF ) Feature
• - Auto load Sharing / Transfer / Shedding features / Max Demand control

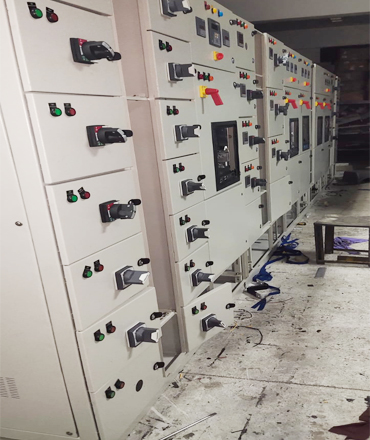

Main LT PCC panels

Primarily used to power the entire electrical systems on the LT side, these PCC Panels are offered in various ratings are from 100 Amps to 6300 Amps.

• - Audio / Visual Annunciation upon Failure is an option.
• - Over Load, Short Circuit, Earth Fault Protections are built-in.
• - Hybrid PCC with AMF, APFC, Synchronization, MCC features as part.
• - PLC Based, Sequential Start/Stop, Interlocking, Remote Control & Monitoring
• - Can be designed and fabricated into all shapes and sizes as the site conditions demand.

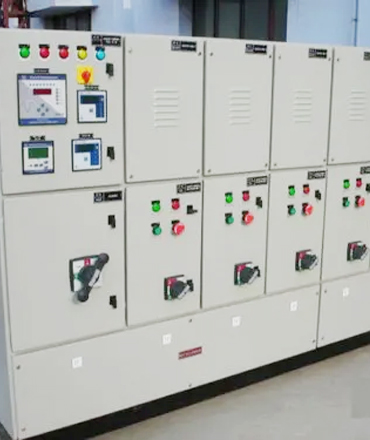

AUTOMATIC POWER FACTOR CORRECTION PANELS (APFC)

For improving the power factor which in turn improves the power quality. Also leading to increase in the efficiency of power supply, delivering immediate cost savings on electricity.

• - Detuned power factor compensator.
• - Contactor and Thyristor based.
• - Protection against high inrush current at the time of switching.
• - Modula expandable design with Aesthetically designed enclosure.
• - Active / Passive Harmonic Filter.
• - Automatic & Real time power factor correction.

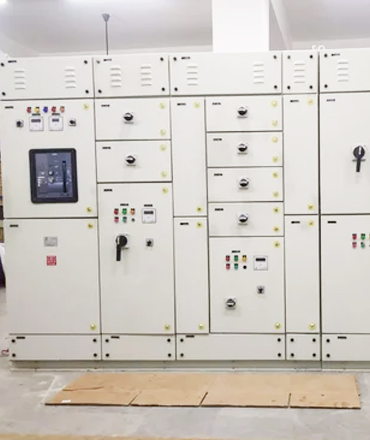

LT MCC PANELS

Motor control centers : Grouping combination starters into one assembly.

• - PLC based Auto/Remote Start-Stop : Sequential Start-Stop.
• - Maximum Controllability with plenty of Human and Machine protections.
• - DOL and S/D feeders with tailored controls using PLC, VFD Soft starters etc.
• - Indoor/Outdoor duty with Fixed / Draw-out type construction

HT & LT BUS DUCT’S

• - Non-segregated bus ducts with inter leaving design.
• - Indoor/outdoor application with IP:55 degree of protection.
• - Aluminum / Copper Bus Duct rated upto, 8000Amps and 100KA S/C fault level.
• - Factors considered : Fault Level, Temperature rise, Thermal Rating, Structural stress, De-rating.
• - 440VAC; 11KV HT and DC Bus Ducts.

CONTROL & RELAY PANELS

• - Panels to cover protective for Capacitors.
• - Feeder protection panel for both incoming and outgoing lines.
• - Transformer panel covering both HV and LV side protections.
• - Panels to housing the protective equipment for Busbar.
• - Panels for the protection of switch gear equipment on Bus couple.

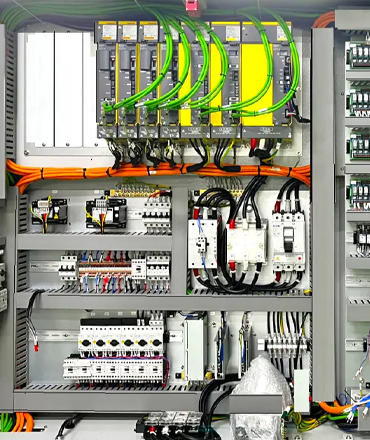

PLC, SCADA AND PROCESS AUTOMATOIN PANELS

• - Complete concept designing based on the process requirement.
• - Sensors and process instrument based on customer requirement.
• - Panel/ Control desk.
• - Process operational Flow chart based on the actual requirement.
• - PLC Logic & SCADA Screens prepared based on the Application.
